SANTA MONICA PIER I DESIGN FOR AN OFFSHORE DESALINATION PLAN
Sun Towers is a design work made by BLDA Architects, in collaboration with Steven Scott, designer and light artist, and XCO2 environmental expert and energy engineers. The brief was to design an offshore power plant in a quite remarkable site: the stretch of sea right in front of the Santa Monica Pier in California.

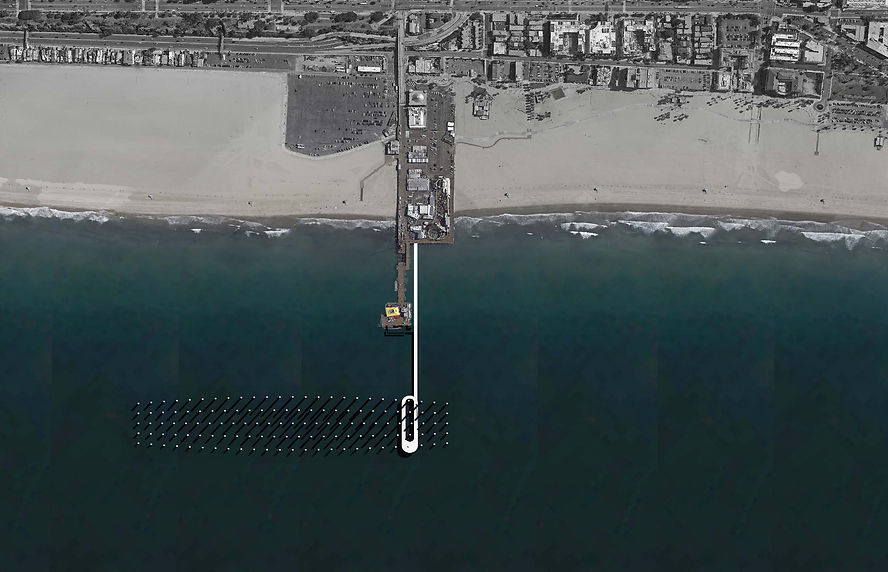

Being between land and water the site plays a strategic and vital role as the potential support of life for the entire bay. Experience tells us how energy and water are intertwined and as California faces severe water shortages in the coming years, the amount of energy required for water production and transmission is sure to increase.BLDA proposal is to create an off-shore structure, well visible from the city and links directly to Santa Monica by extending its existing pier.
The intention was to move away from the old centralized power plant of territorial proportions. Smaller,
multiple and standardised, self-sufficient power units are therefore proposed. Each cell is a highly efficient micro plant, shaped as a slender mast emerging from the sea. Each cell is fully flexible and adaptable and can easily be moved, dismantled or duplicated. The power plant can then expand or reduce in size, multiplying the site’s energy capacity over time.
The second environmental aspect taken into consideration is the sun as being the predominant renewable energy resource in this unique location. Instead of covering the sea with a horizontal canopy, we explored a vertical option, where the photo-voltaic cells are grouped upon slender vertical masts. This increases the overall surface area exposed to the sun and avoids the loss of light in the sea below due to overshadowing.
During the night, waves of light and colour, designed by light artist Steven Scott, ‘sweep across the installation, rising and falling with tide and swell’. Much like the colour programming, the timing of movement can
also abstract these natural rhythms and enter a dialogue with them and the observer.
Last thought goes to the immense visual impact that such a structure will have on observers: such obvious visibility requires the users to be allowed into the structure to fully experience its space. BLDA decided to extend the existing pier and connect it to the power plant. This link is more than a bridge between the old and new structures, it is a meaningful way to restore the lost partnership between sea and community.
Together with the environmental benefits, our design has indeed the potential to change the livelihood of the community alongside the entire bay by strengthening the connections within, as well as to lead the economic growth and future developments around the site itself.
